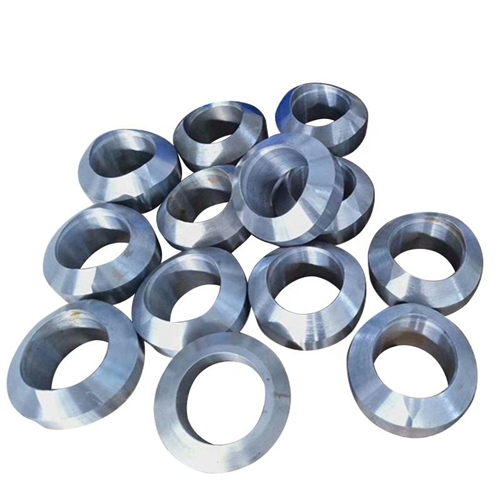

GTL-2001S Sock O-let

Nominal Size

Branch Nominal Size

Depth of Socket

Face of Fitting to Crotch

OD of Fitting

Socket Wall Thickness

Cut Hole Dia.

DN

NPS

DN

NPS

J min

A max

D 1 min

C min

d 1 nom

3000

6000

3000

6000

3000

6000

3000

6000

8~900

1/4~36

6

1/8

9.5

10

-

27

-

3.18

-

16

-

10~900

3/8~36

8

1/4

9.5

10

-

27

-

3.78

-

16

-

15~900

1/2~36

10

3/8

9.5

13

-

30

-

4.01

-

19

-

20~900

3/4~36

15

1/2

9.5

16

24

38

47

4.67

5.97

24

19

25~900

1~36

20

3/4

12.5

16

25

47

53

4.90

6.96

30

25

32~900

1 1/4~36

25

1

12.5

22

29

56

63

5.69

7.92

36

33

40~900

1 1/2~36

32

1 1/4

12.5

22

30

66

74

6.07

7.92

45

38

50~900

2-~36

40

1 1/2

12.5

24

32

75

83

6.35

8.92

51

49

65~900

2 1/2~36

50

2

16.0

24

37

90

104

6.93

10.92

65

59

80~900

3~36

65

2 1/2

16.0

25

-

105

-

8.76

-

76

-

100~900

4~36

80

3

16.0

30

-

124

-

9.52

-

94

-

125~900

5~36

100

4

19.0

3o

-

154

-

10.69

-

121

-
