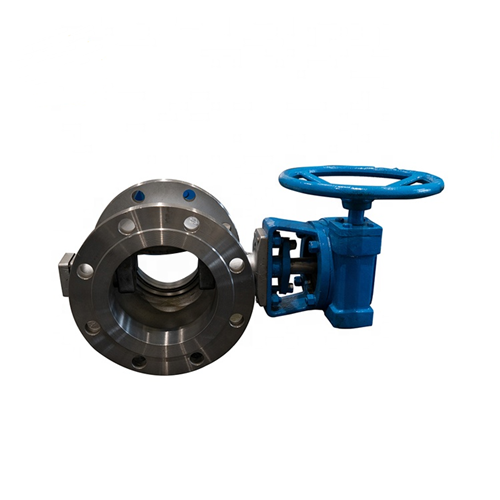

    GTL-VQ347H Stainless Steel V-ball Valve



    V-ball valve is a core valve seat metal, or metal to ptfe seal with the rotary ball valve, it will ball valve and butterfly valve control characteristics combined into one, can be used as a control valve, but also can be used to shut off the cut-off valve. Therefore, it is suitable for the control of related process parameters in suspension medium containing fiber or small solid particles in industrial enterprises such as papermaking, chemical industry and metallurgy, especially for the automatic adjustment of liquid containing suspended particles such as pulp, white water, black liquid and white liquid and thick and turbidized liquid medium in the production process of pulp and paper making.

    DETAILS

    Specification

    PN

    Test pressure(MPa)

    Suitable medium

    Suitable temperature

    Shell test

    Seal test

    1.6

    2.4

    1.76

    Water, oil, gas and high viscosity, including fiber, solid particles and other media

    -28℃~≤550℃

    2.5

    3.75

    2.75

    4.0

    6.0

    4.4

    Application specification

    Connecting flange

    JB79-59    GB9113    HG20592-97    ANSI B16.5

    Test and inspection

    JB/T9092-99               API 598

    Materials

    Body,Bonnet

    GB

    WCB

    ZG1Cr18NiTi

    ZG0Cr18Ni12Mo2

    ZG15Cr1Mo1V

    ASTM

    WCB

    CF8

    CF8M

    WC9

    Ball

    GB

    2Cr13/1Cr18Ni9Ti

    1Cr18Ni9Ti
    /
    Special surface treatment

    0Cr18Ni12Mo2
    /
    Special surface treatment

    25Cr2Mo1V
    /
    Special surface treatment

    ASTM

    CA15

    CF8+HF

    CF8M+HF

    WC9+HF

    Stem, Shaft

    GB

    2Cr13

    1Cr18Ni9Ti

    0Cr18Ni12Mo2

    25Cr2Mo1V

    ASTM

    420

    304

    316

    F22a

    Seat

    GB

    PTFE

    2Cr13

    PTFE

    1Cr18Ni9Ti

    PTFE

    0Cr18Ni12Mo2

    D517

    ASTM

    PTFE

    420

    PTFE

    304

    PTFE

    316

    HF

    Packing

    GB

    PTFE

    Graphite

    PTFE

    Graphite

    PTFE

    Graphite

    Graphite

    ASTM

    PTFE

    Graphite

    PTFE

    Graphite

    PTFE

    Graphite

    Graphite

    Bolt

    GB

    35

    0Cr18Ni9

    0Cr18Ni9

    15Cr1Mo1V

    ASTM

    A193 B7

    A320-B8

    A320-B8

    A193-B16

    Nut

    GB

    45

    0Cr18Ni9

    0Cr18Ni9

    20CrMo

    ASTM

    A194 2H

    A194-8

    A194-8

    A194-4

    Dimensions:

    PN(MPa)

    DN(mm)

    Size(mm)

    d1

    L

    D

    D1

    D2

    D6

    f

    f2

    b

    Z-φd

    H1

    H2

    1.6

    25

    25

    150

    115

    85

    65

    -

    2

    -

    14

    4-14

    -

    75

    32

    32

    165

    135

    100

    78

    -

    2

    -

    16

    4-18

    -

    105

    40

    40

    180

    145

    110

    85

    -

    3

    -

    16

    4-18

    -

    95

    50

    50

    200

    160

    125

    100

    -

    3

    -

    16

    4-18

    -

    107

    65

    65

    220

    180

    145

    120

    -

    3

    -

    18

    4-18

    -

    142

    80

    80

    250

    195

    160

    135

    -

    3

    -

    20

    8-18

    -

    152

    100

    100

    280

    215

    180

    155

    -

    3

    -

    20

    8-18

    -

    178

    125

    125

    320

    245

    210

    185

    -

    3

    -

    22

    8-18

    -

    252

    150

    150

    360

    280

    240

    210

    -

    3

    -

    24

    8-23

    -

    272

    200

    200

    400

    335

    295

    265

    -

    3

    -

    26

    12-23

    -

    342

    2.5

    25

    25

    150

    115

    85

    65

    -

    2

    -

    16

    4-14

    -

    75

    32

    32

    165

    135

    100

    78

    -

    2

    -

    18

    4-18

    -

    85

    40

    40

    180

    145

    110

    85

    -

    3

    -

    18

    4-18

    -

    95

    50

    50

    200

    160

    125

    100

    -

    3

    -

    20

    4-18

    -

    107

    65

    65

    220

    180

    145

    120

    -

    3

    -

    22

    8-18

    -

    142

    80

    80

    250

    195

    160

    135

    -

    3

    -

    24

    8-18

    -

    152

    100

    100

    280

    230

    190

    160

    -

    3

    -

    28

    8-23

    -

    178

    125

    125

    320

    270

    220

    188

    -

    3

    -

    30

    8-25

    -

    252

    150

    150

    360

    300

    250

    218

    -

    3

    -

    34

    8-25

    -

    272

    200

    200

    400

    360

    310

    278

    -

    3

    -

    34

    12-25

    -

    342

    4.0

    25

    25

    150

    115

    85

    65

    58

    2

    4

    16

    4-14

    -

    75

    32

    32

    180

    135

    100

    78

    66

    2

    4

    18

    4-18

    -

    107

    40

    40

    200

    145

    110

    85

    76

    3

    4

    18

    4-18

    -

    95

    50

    50

    220

    160

    125

    100

    88

    3

    4

    20

    4-18

    -

    107

    65

    65

    250

    180

    145

    120

    110

    3

    4

    22

    8-18

    -

    142

    80

    80

    280

    195

    160

    135

    121

    3

    4

    22

    8-18

    -

    152

    100

    100

    320

    230

    190

    160

    150

    3

    4.5

    24

    8-23

    -

    178

    125

    125

    400

    270

    220

    188

    176

    3

    4.5

    28

    8-25

    -

    252

    150

    150

    400

    300

    250

    218

    204

    3

    4.5

    30

    8-25

    -

    272

    200

    200

    502

    375

    320

    282

    260

    3

    4.5

    38

    12-30

    -

    342
