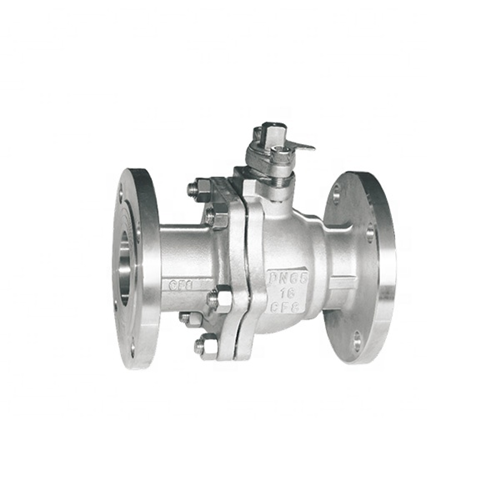

GTL-Q41F Flanged Stainless Steel Ball Valve

Floating ball valve structure is simple and compact, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface is often in a closed state, not easy to be washed by the medium, easy operation and maintenance, used to cut off or connect the medium in the pipeline, choose different materials, Suitable for water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other media.

Product features:

Ball valve applicable media: water, gas, oil, natural gas and acid and alkali corrosive media

Ball valve applicable temperature: -196 ~ 350℃

Ball valve drive mode: manual, pneumatic, electric, hydraulic and so on

Ball valve nominal diameter: DN15 ~ 250mm 1/2 "~ 10"

DETAILS

Specifications

Nominal diameter mm		DN15-DN300
Material code		C	P	R
Name of parts	Body	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
	Ball	2Cr13	1Cr18Ni9Ti	1Cr18Ni12MoTi
	Stem	2Cr13	1Cr18Ni9Ti	1Cr18Ni12MoTi
	Sealing ring	Reinforced PTFE , PPL
	Packing	PTFE , Flexible graphite
Applicable	Suitable medium	Steam, water, oil	Nitrose	Acetic acid
	Suitable temperature	-28℃ - 300℃
Actuator	Model	DA/SR Series、GTD/GTE Series、QGSY Series
	Bleed pressure	0.4-0.7MPa

Test pressure （Mpa）	Nominal pressure（Mpa）					Pressure stage（class）			JIS(Mpa)
Test pressure （Mpa）	1.6	2.5	4.0	6.4	10.0	150	300	600	10K	20K
Shell Test	2.4	3.8	6.0	9.6	15.0	3.1	7.8	15.3	2.4	3.8
Seal test	1.8	2.8	4.4	7.0	11.0	2.2	5.6	11.2	1.5	2.8
Air tight test	0.5～0.7

Dimensions

DN(mm)	Size(mm)															Actuator type
	1.6MPa					2.5MPa					4.0MPa					Actuator type
	L	D	D1	b	Z-фD	L	D	D1	b	Z-фD	L	D	D1	b	Z-фD	Optional DA/SR、QGSY、 SY-CH、GTD/GTE AW/AWS、SY-YD、 serial actuator The above selection is for reference only. The specific selection should be based on actual requirements.
15	130	95	65	14	4-14	130	95	65	16	4-14	130	130	65	16	4-14
