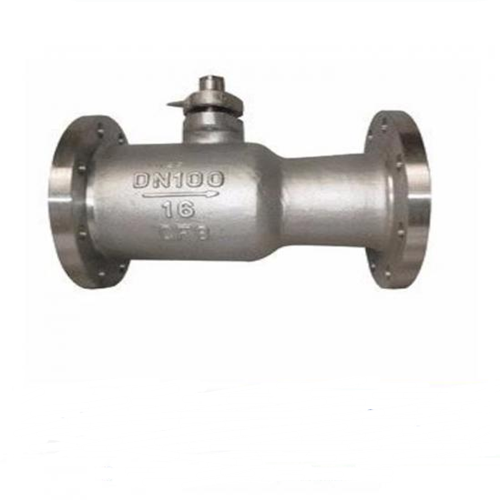

    GTL-Q41M Stainless Steel Integral High Temperature Ball Valve



    Our design and production of one high temperature ball valve is the use of new sealing material for the valve seat, the same product ptfe sealing ball valve, service life increased 3-5 times. Has stable performance, reliable sealing, friction small, light switch, high temperature resistant, wear resistant, oil resistant, corrosion resistance, long life and other advantages, "he wei NIWEI" brand high temperature ball valve and globe valve, plunger valve, drain valve, the length of the structure, greater use of the ball valve is widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, Can replace globe valve, plunger valve, quick blowdown valve.

    DETAILS

    Specifications:

    Model

    Nominal pressure
    (MPa)

    Strength test pressure (MPa)

    Seal test pressure (MPa)

    Suitable temperature
    (℃)

    Suitable medium

    Q41M/F-16C

    1.6

    2.4

    1.8

    -28~+300 (M/F)

    Heat conduction oil, water, steam, gas, oil, nitric acid corrosive media, acetic acid corrosive media

    Q41M/F-16C

    2.5

    3.8

    2.8

    -28~+350 (PPN)

    Materials:

    No.

    Name of parts

    材料

    1

    Body

    Ductile iron, carbon steel, cast steel

    2

    Sealing ring

    High strength wear-resistant carbon graphite≤300℃

    PPN≤350℃

    3

    Ball

    Stainless steel

    4

    Packing

    PTFE

    5

    Packing gland

    QT450-10 Ductile iron

    6

    Stem

    Carbon steel, chrome stainless steel

    7

    Handle

    Carbon steel



    Dimensions:



    Model

    DN(mm)

    Size(mm)

    L

    D

    D1

    D2

    b-d

    Z-Φd

    H

    D0

    Q41M/F -16P

    15

    115

    95

    65

    45

    14-2

    4-14

    105

    150

    20

    130

    105

    75

    55

    16-2

    4-14

    110

    150

    25

    140

    115

    85

    65

    16-2

    4-14

    120

    160

    32

    165

    135

    100

    78

    16-2

    4-18

    145

    160

    40

    180

    145

    110

    85

    16-3

    4-18

    155

    250

    50

    200

    160

    125

    100

    18-3

    4-18

    175

    300

    65

    220

    180

    145

    120

    18-3

    4-18

    195

    300

    80

    250

    195

    160

    135

    20-3

    8-18

    225

    320

    100

    280

    215

    180

    155

    20-3

    8-18

    255

    320

    125

    320

    245

    210

    185

    20-3

    8-18

    285

    400

    150

    360

    280

    240

    210

    24-3

    8-23

    295

    400

    200

    400

    335

    295

    265

    30-3

    12-23

    330

    450

    Q41M/F -25P

    40

    180

    145

    110

    85

    18-3

    4-18

    155

    250

    50

    200

    160

    125

    100

    20-3

    4-18

    175

    300

    65

    220

    180

    145

    120

    22-3

    8-18

    195

    300

    80

    250

    195

    160

    135

    22-3

    8-18

    225

    320

    100

    280

    230

    190

    160

    24-3

    8-23

    255

    320

    125

    320

    270

    220

    188

    28-3

    8-25

    285

    400

    150

    360

    300

    250

    218

    30-3

    8-25

    295

    400

    200

    400

    360

    310

    278

    34-3

    12-25

    330

    450
