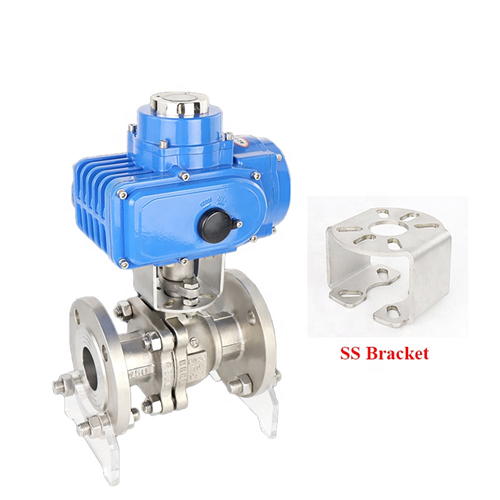

Electric ball valve has excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life and easy maintenance. Products are widely used in chemical, petroleum, light textile, electric power, food pharmaceutical, refrigeration, paper industry system control.
Specifications:
|
DN(mm) |
DN15～DN250 |
|
Nominal Pressure |
1.6、4.0、6.4MPa、ANSI150、300(Lb)、JIS10、20K |
|
Suitable medium |
Water, petroleum, nitric acid, acetic acid, viscous fluid, slurry, strong oxidizing medium, etc |
|
Medium temperature |
-40～+180℃ -40～+350℃ |
|
Leakage rate |
0 Meets ANSIB16.104 level 5 standard |
|
Travel Angle |
90° |
|
Body |
A105、F304、F316、WCB、FZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3M |
|
Seat |
PTFE(Room temperature)、Special PPL(High temperature) |
Dimensions:
|
DN(mm) |
Size(mm) |
||||||
|
L |
D3 |
D2 |
D1 |
b |
f |
N-d |
|
|
15 |
130 |
95 |
65 |
45 |
14 |
2 |
4-14 |
|
20 |
140 |
105 |
75 |
55 |
14 |
4-14 |
|
|
25 |
150 |
115 |
85 |
65 |
14 |
4-14 |
|
|
32 |
165 |
135 |
100 |
78 |
16 |
4-18 |
|
|
40 |
180 |
145 |
110 |
85 |
16 |
3 |
4-18 |
|
50 |
200 |
160 |
125 |
100 |
16 |
4-18 |
|
|
65 |
220 |
180 |
145 |
120 |
18 |
4-18 |
|
|
80 |
250 |
195 |
160 |
135 |
20 |
8-18 |
|
|
100 |
280 |
215 |
180 |
155 |
20 |
8-18 |
|
|
125 |
320 |
245 |
210 |
185 |
22 |
8-18 |
|
|
150 |
360 |
280 |
240 |
210 |
24 |
8-23 |
|
|
200 |
400 |
335 |
295 |
265 |
26 |
12-23 |
|
