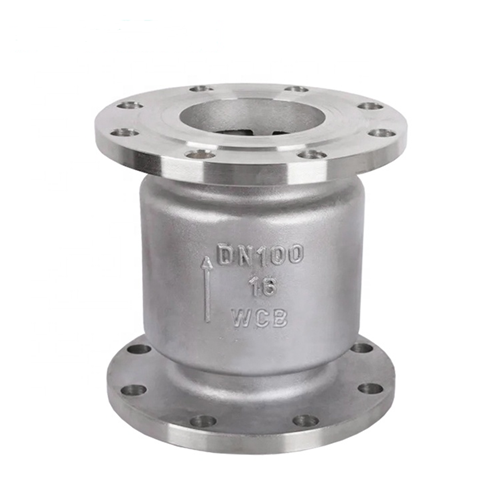

GTL-H42H Vertical Stainless Steel Check Valve

Vertical Stainless Steel Check Valve is normally closed, due to the pressure of the inlet medium in the pipeline, and overcome the spring resistance to open the valve. When the medium pressure at the inlet end is lower than the outlet end, the spring will push the valve core to the seat and make the valve close, prevent the medium upstream, so the start and stop effect. Due to the use of spring support valve core, so the use of vertical installation.

DETAILS

Performance specification：

Technical specification		Pressure Rating
Technical specification		16	20	25	32	35	40	45	50	60	70
Working pressure（Mpa）		≤16	≤20	≤25	≤32	≤35	≤40	≤45	≤50	≤60	≤70
Test pressure（M）	Strength	24	30	37.5	48	52.5	60	67.5	75	90	105
Test pressure（M）	Seal	17.6	22	27.5	35.2	38.5	44	49.5	55	66	77
Medium		Water、Oil
Temperature		≤120℃

Dimensions：

Nominal pressure PN	Nominal diameter DN	Main connection dimensions									Dimension
Nominal pressure PN	Nominal diameter DN	L	D	D 1	D 2	D 6	b	f	f 1	Z-φd	H
1.6MPa	40	200	145	110	85	-	16	2	-	4-18	95
	50	230	160	125	100	-	16	2	-	4-18	105
	65	290	180	140	120	-	18	2	-	4-18	120
	80	310	195	165	135	-	20	3	-	8-18	130
	100	350	215	180	155	-	20	3	-	8-18	140
	125	400	245	210	185	-	22	3	-	8-12	155
	150	480	280	240	210	-	24	3	-	8-23	180
	200	600	335	295	265	-	26	3	-	12-23	215
