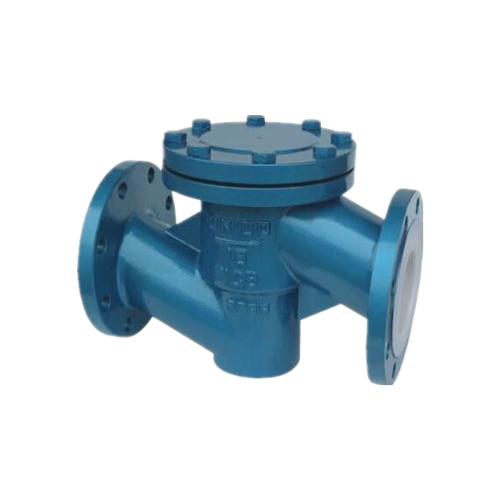

The PTFE lined Lift Check Valve is suitable for -50℃ ~ 150℃ of various concentrations of aqua regia, sulfuric acid, hydrochloric acid, hydrofluoric acid and various organic acids, strong acids, strong oxidants, FEP is also suitable for various concentrations of strong alkali organic solvents and other corrosive gases, liquid medium on the pipeline.
List of main parts and materials
|
Item |
Name of Parts |
Graphitic cast iron |
Cast Iron |
Stainless acid resistant cast steel |
Ultra low carbon stainless acid resistant cast steel |
||
|
Z |
C |
P |
R |
PL |
RL |
||
|
1 |
Body/Bonnet |
HT250 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
|
2 |
Disc/Stem |
35 |
1Cr13 |
1Cr18Ni9 |
1Cr18Ni12Mo2Ti |
00Cr18Ni10 |
00Cr17Ni14Mo2 |
|
3 |
Lining/Seat |
PCTEF（F3）,FEP（F46）,PFA（Soluble F4）,PP,PO |
|||||
|
4 |
Fastening bolt |
WCB |
1Cr17Ni2 |
1Cr18Ni9Ti |
|||
|
5 |
Nut |
PTFE（F4） |
CF8 |
CF8 |
|||
Appearance and connection dimensions
|
Nominal Diameter |
L |
D |
D1 |
D2 |
f |
b |
Z-φd |
D |
D1 |
D2 |
f |
b |
Z-φd |
|
|
DN（mm） |
NPS（inch） |
PN1.0MPa |
PN1.6MPa |
|||||||||||
|
15 |
1/2 |
130 |
95 |
65 |
45 |
2 |
14 |
4-φ14 |
130 |
95 |
65 |
2 |
14 |
4-φ14 |
|
20 |
3/4 |
150 |
105 |
75 |
55 |
2 |
16 |
4-φ14 |
150 |
105 |
75 |
2 |
16 |
4-φ14 |
|
25 |
1 |
160 |
115 |
85 |
65 |
2 |
16 |
4-φ14 |
160 |
115 |
85 |
2 |
16 |
4-φ14 |
|
32 |
5/4 |
180 |
135 |
100 |
78 |
2 |
18 |
4-φ18 |
180 |
135 |
100 |
2 |
18 |
4-φ18 |
|
40 |
3/2 |
200 |
145 |
110 |
85 |
3 |
18 |
4-φ18 |
200 |
145 |
110 |
3 |
18 |
4-φ18 |
|
50 |
2 |
230 |
160 |
125 |
100 |
3 |
20 |
4-φ18 |
230 |
160 |
125 |
3 |
20 |
4-φ18 |
|
65 |
5/2 |
290 |
180 |
145 |
120 |
3 |
20 |
4-φ18 |
290 |
180 |
145 |
3 |
20 |
4-φ18 |
|
80 |
3 |
310 |
195 |
160 |
135 |
3 |
22 |
4-φ18 |
310 |
195 |
160 |
3 |
22 |
4-φ18 |
|
100 |
4 |
350 |
215 |
180 |
155 |
3 |
22 |
8-φ18 |
350 |
215 |
180 |
3 |
24 |
8-φ18 |
|
125 |
5 |
400 |
245 |
210 |
185 |
3 |
24 |
8-φ18 |
400 |
245 |
210 |
3 |
26 |
8-φ18 |
|
150 |
6 |
480 |
280 |
240 |
210 |
3 |
24 |
8-φ23 |
480 |
280 |
240 |
3 |
28 |
8-φ23 |
|
200 |
8 |
600 |
335 |
295 |
265 |
3 |
26 |
8-φ23 |
495 |
335 |
295 |
3 |
30 |
12-φ23 |
|
250 |
10 |
622 |
390 |
350 |
320 |
3 |
28 |
12-φ23 |
622 |
405 |
355 |
3 |
32 |
12-φ25 |
|
300 |
12 |
698 |
440 |
400 |
368 |
4 |
28 |
12-φ23 |
698 |
460 |
410 |
4 |
34 |
12-φ25 |
|
350 |
14 |
787 |
500 |
460 |
428 |
4 |
30 |
16-φ23 |
787 |
520 |
470 |
4 |
38 |
16-φ25 |
|
400 |
16 |
914 |
565 |
515 |
482 |
4 |
32 |
16-φ25 |
914 |
580 |
525 |
4 |
40 |
16-φ30 |
|
450 |
18 |
978 |
615 |
565 |
532 |
4 |
32 |
20-φ25 |
|
|
|
|
|
|
|
500 |
20 |
978 |
670 |
620 |
585 |
4 |
34 |
20-φ25 |
|
|
|
|
|
|
